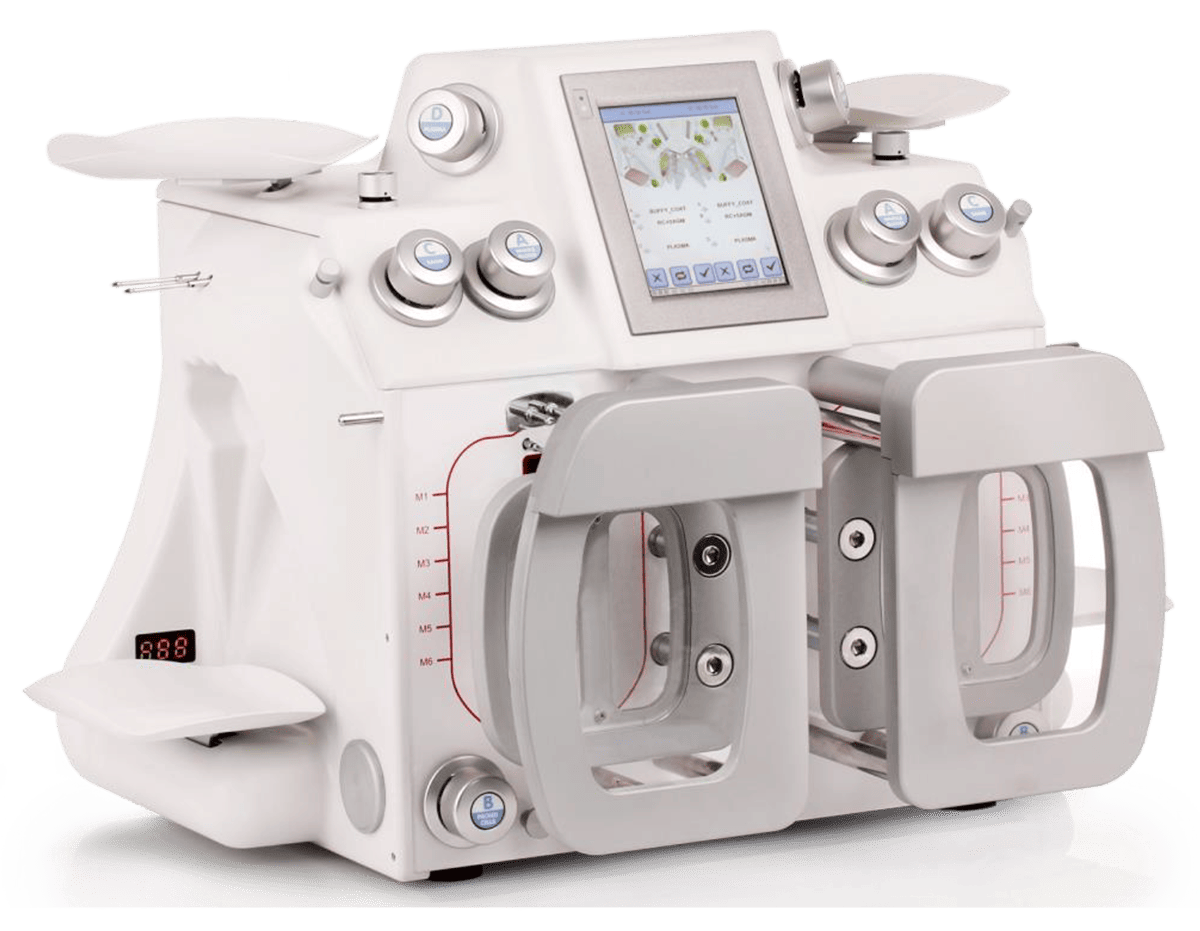

LUXOmatic V2
More confidence in every step –
smart blood component separation for faster workflows and consistent results
Dual Press System
Two independent separation places in one device – Saves working space and time.
Data Management
Records critical separation parameters for quality assurance and traceability.
Easy Remote Access
Possibility of remote maintenance, diagnosis, and service worldwide.
User Friendly Large Touch Screen
Color touch screen with guidance mode for a low probability of user mistake.
Sophisticated motor driven blood component separator
Engineered for precision and performance, our premium blood separator ensures efficient and reliable blood component processing. It ensures low RBC hemolysis and consistently high-quality plasma and platelets, including for low-volume applications such as cord blood.
With processing times of just 50 seconds (Top/Top) and 1.5–3 minutes (Top/Bottom), it improves workflow efficiency and supports standardized operations in blood banks. Its compact dual-separation design maximizes space efficiency while ensuring robust, consistent performance in everyday use.
Available features and options

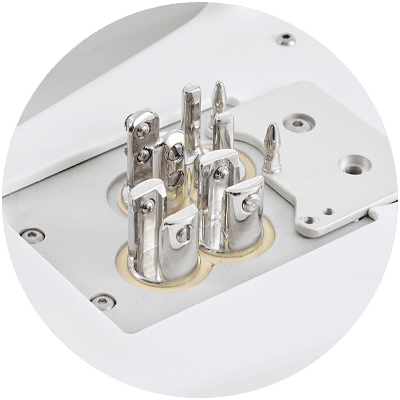

Automatic Valve Breakers
6x automatic valve breakers for all products and adjustable for any blood bag type.

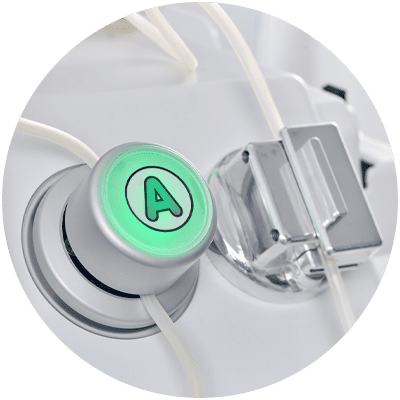

RGB Stopping Sensor
Special RBC stopping sensor, to increase platelet recovery rate.

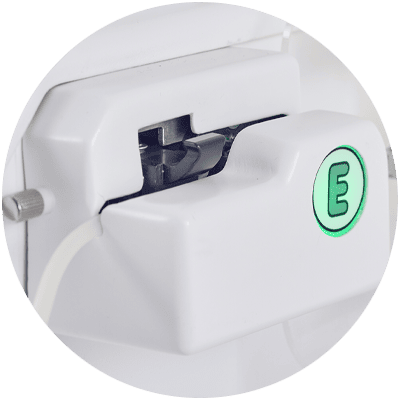

Lipemic Sensor
Storing Lipemia Index in data base with data export. Used to identify and control Lipemic Plasma.

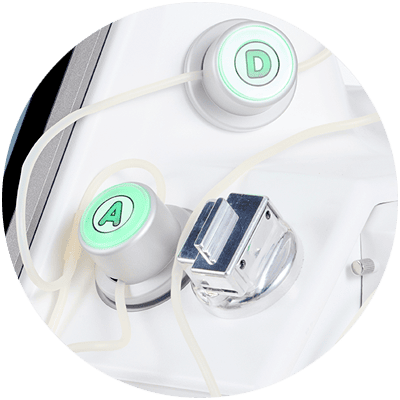

Illuminated Clamp with tube detection
Provide clear visual feedback on the extraction status and confirm correct tube positioning, ensuring a smoother and more intuitive workflow.

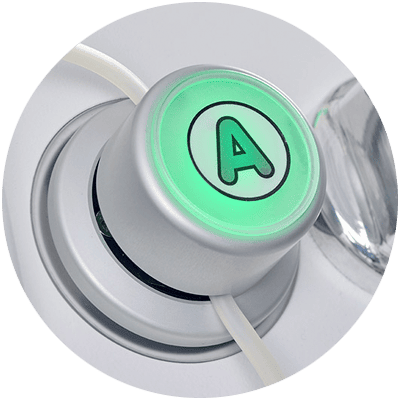

Optical Sensors
4 adaptive optical sensors, on each side for RBC detection (2 Main and 2 safety sensors) for all tube types and all colors of plasma and RBC.

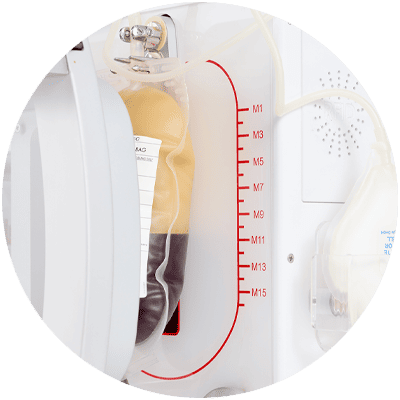

Level Sensors
32 ( 16 per side) adjustable high-resolution sensors for HCT detection, and Buffy coat monitoring covering whole blood bags.

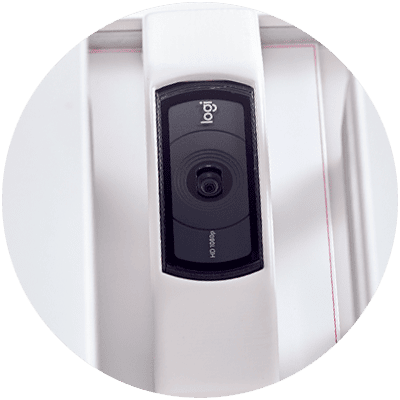

Documentation Camera
A high-resolution camera captures the centrifuged blood bag, enabling quick and accurate visual assessment of centrifugation quality.

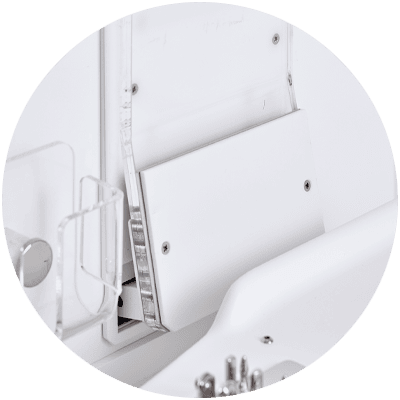

Motor Driven Side Press
Automatically removes residual air from the plasma bag after processing, helping prevent bag damage during freezing.
Precise Balances
Integrated high-accuracy balances continuously monitor bag weights throughout processing to ensure precise, program-controlled separation.

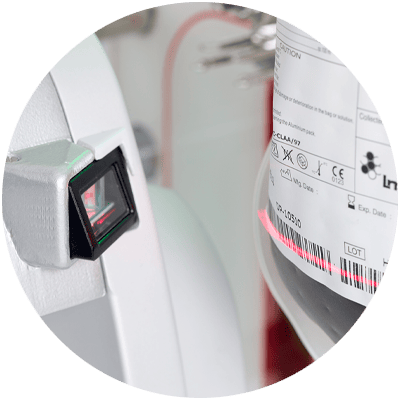

Barcode Scanner
An internal or external barcode reader supporting multiple standards enables fast and reliable identification of blood bags.
Gallery
Available features
Valve Breakers
Illumination ring
Level sensors
Integrated Barcode Scanner
LUXOmatic V2 Configurations
| Basic LU-20001 | Basic Plus LU-20002 | Enhanced LU-20003 | Enhanced RFID LU-20004 |
Enhanced Plus LU-20005 | |
|---|---|---|---|---|---|
| High Precision Balances x8 | √ | √ | √ | √ | √ |
| Sealing Clamps x10 | √ | √ | √ | √ | √ |
| LCD Color Touch Screen with guiding mode | √ | √ | √ | √ | √ |
| English Language | √ | √ | √ | √ | √ |
| 16 Level Sensors | √ | √ | √ | √ | √ |
| Double Direction Press | √ | √ | √ | √ | √ |
| Illuminated Clamps with tube detection | X | √ | √ | √ | √ |
| Motor Driven Side Press | X | √ | √ | √ | √ |
| Automatic Mother bag breakaway | X | o | √ | √ | √ |
| Automatic Bottom breakaway | X | o | √ | √ | √ |
| SAGM Rod breakaway | X | o | √ | √ | √ |
| SAGM Press breakaway | X | o | √ | √ | √ |
| Integrated Barcode Scanner | X | X | √ | √ | √ |
| RGB Sensor | X | X | o | o | √ |
| Lipemic Sensor | X | X | o | o | √ |
| Documentation Camera | X | X | o | o | o |
| External Barcode Reader | o | √ | o | o | o |
| RF ID Reader | X | X | X | √ | X |
| Illumination Ring for clamp A | √ | X | X | X | X |
| Adjustable Pressing Plate | X | X | o | o | √ |
| Additional SAGM Rod | o | o | X | X | X |
| Air Extraction Top Press | o | X | X | X | X |
| Air Extraction Top Press with SAGM Rod | o | X | X | X | X |
| Data Transfer application ERYSYS | o | o | o | o | o |
| Bi-directional communication | o | o | o | o | o |
| Splash Guard | X | o | o | o | o |
| Plasma bag plexi holder | X | o | o | o | o |
| Filter holder on SAGM Rod | X | o | o | o | o |
| Filter holder for pool filter | X | o | o | o | o |
| Filter holder at sides | X | o | o | o | o |
| International plugs | o | o | o | o | o |
| Language package | o | o | o | o | o |
| Customized Logo | o | X | X | X | X |
| Colour option | o | X | X | X | X |
√ – standard o – optional X – not available
